Technical Specifications

Key details about the machine's size, capacity, energy use, and materials to guide your choice.

Height incl. Bean container:

773 mm

Height (Open lid):

1001 mm

Width (excl. Door key):

409 mm

Depth:

575 mm

Electrical Connection:

230V / 10A

Maximum Power:

2300W

Capacity for OptiFresh containers

Depending on the number of containers, OptiFresh (Bean) has the capacity for the following quantities of ingredients.

	5,9 l	5,1 l	2,3 l	1,2 l
Coffee Beans	± 2200 g / 290 cups	--	--	--
Freshly Brewed Coffee	--	± 1800 g / 230 cups	--	--
Topping	--	± 3200 g / 210 cups	± 1350 g / 80 cups	± 750 g / 50 cups
Cocoa	--	± 3600 g / 200 cups	± 1500 g / 85 cups	± 800 g / 45 cups

Drink Options

• Brew time, cup (120 ml): 28 seconds
• Capacity per hour: approximately 130 cups (120 ml) / 15 l
• Market effect: 1N~230V / 50~60 Hz / 2300 W
• Adjustable cup holder: 60-115 mm
• Max crane height: 167 mm
• Stainless steel coffee maker, capacity: 3 l
• Water connection: ¾"
• Waste container, volume 6.7 l (± 125 cups)

OptiFresh

Right Side

Back Side

OptiFresh Bean

Right Side

Back Side

Beverages

With OptiFresh, you can brew all kinds of coffee: from black and decaf to cappuccino and latte macchiato. OptiFresh comes in two different models: with or without a coffee grinder. Craving something else? OptiFresh can also be used to make delicious instant products like chocolate. Enjoy!

Coffee

Coffee with Milk

Mocha

Mocha with Milk

Café Latte

Cappuccino

Latte Macchiato

Chocolate

Chocolate with Milk

Viennese Melange

Espresso Choc

Chai Latte

Mocha Chai

Hot Water

Advantages

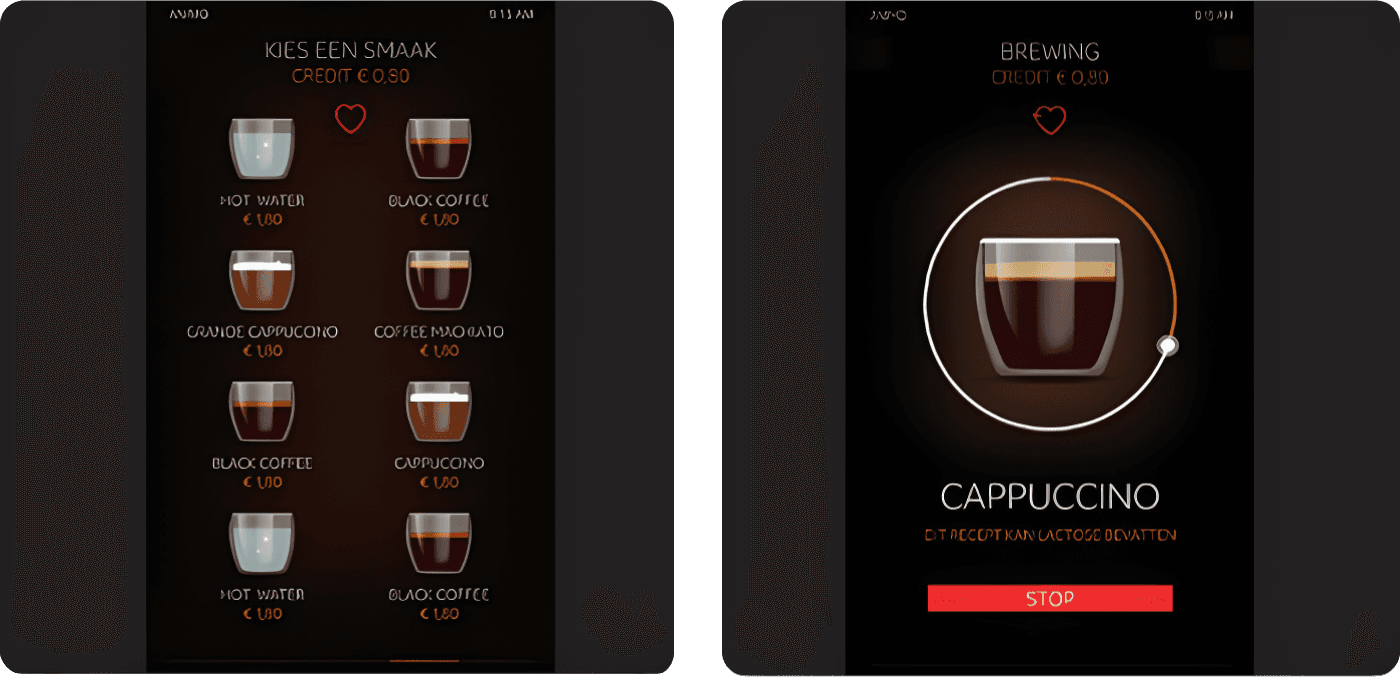

Touch Screen

• Easy to use through the intuitive user interface
• Simply swipe between pages
• 24 drinks that are easy to program
• Follow the brewing process on the screen
• It's easy to adjust the desired strength
• Screensaver for logo, image, video, or advertising

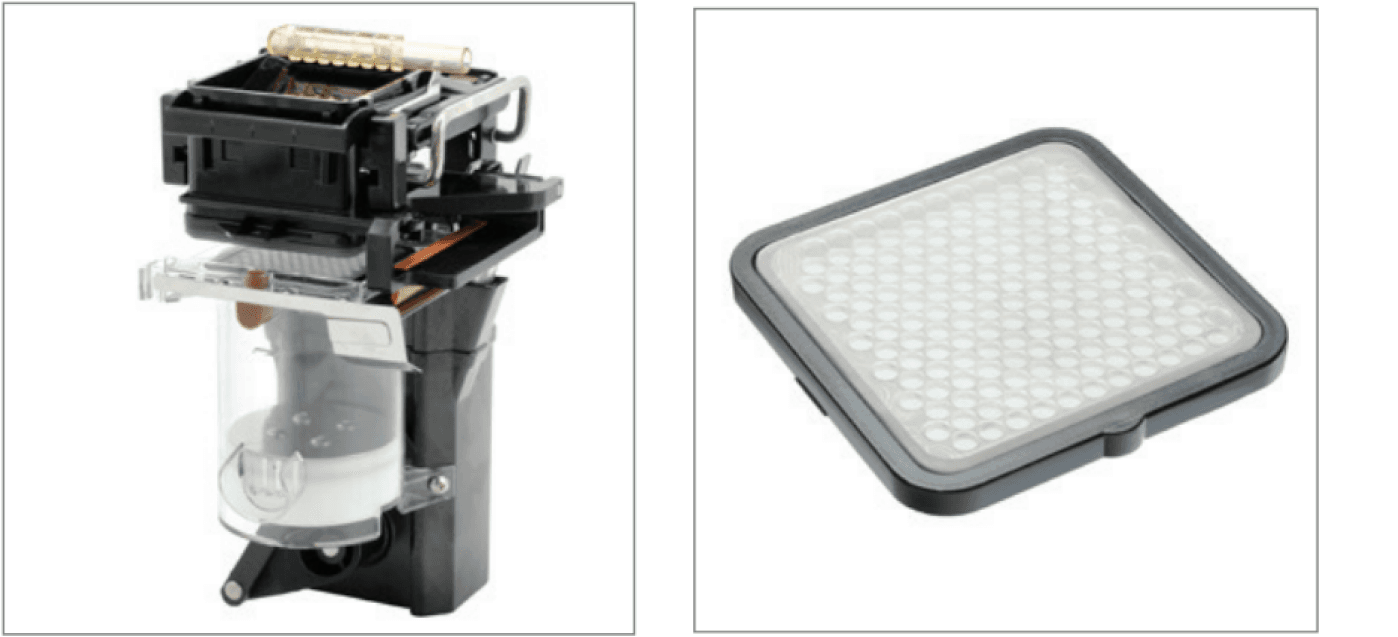

Brewer

• Permanent filter made of stainless steel
• Coffee grinder with ceramic grinding discs (Ditting®, 300,000 cups)

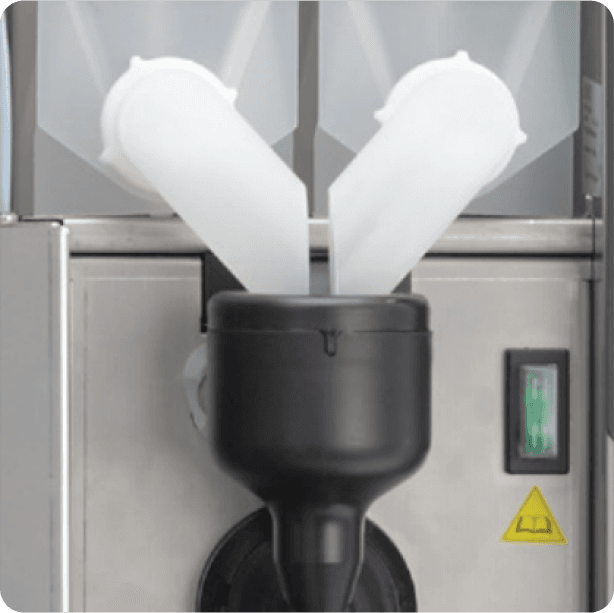

Mixer with Adjustable Speed

The mixer has adjustable speed (rpm) to create an excellent topping.

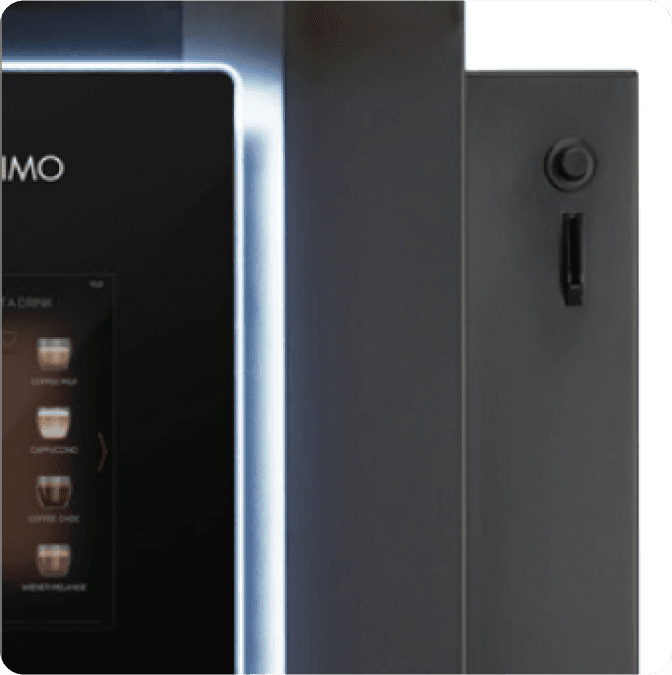

Alternatives

• Compatible with various payment systems (MDB).
• Cup sensor, coffee is brewed only if there is a cup in place.
• Hot and cold from one machine (cooling unit in the undercounter).
• Colored front, with a selection of RAL colors (standard models are available in black, white, or stainless steel).
• Extension for bean container up to: 2.9 kg or 3.6 kg
• Extension for filter container up to: 3.8 kg

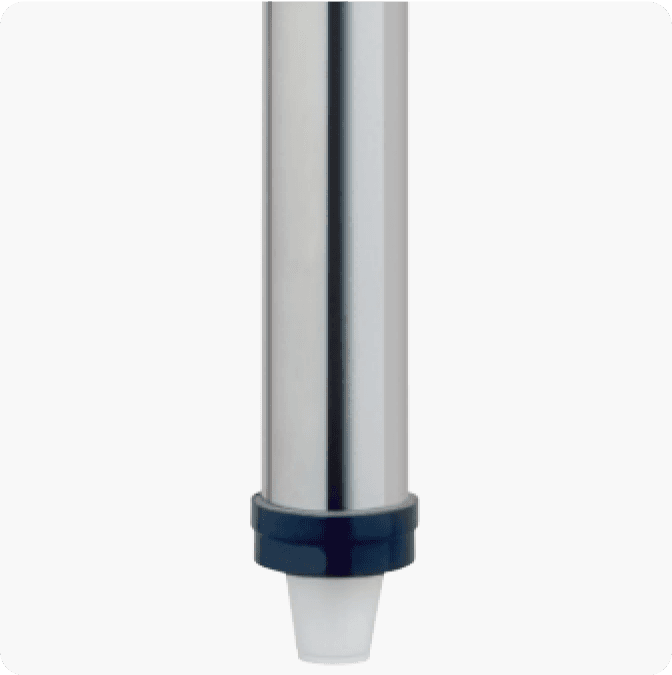

Accessories

• Cup holder
• Water filter
• Undercounter with accessible large trash can
• Freestanding set
• Cup warmer (KKWn)
• Thermos jug 1 l
• Extra container for coffee beans (OptiFresh Bean)
• Complete package with cleaning products
• Options: Adjustable base plate for thermos jug 2 l

Beverage Alternatives

The beverage options depend on which ingredients you select for each container. Adjustable controls make it easy to modify the options.

Alternative	OF(B) 1	OF(B) 2	OF(B) 3	OF(B) 4
Coffee (Thermal Jugs)
Coffee with Milk
Coffee with Sugar
Coffee with Milk and Sugar
Chocolate with Milk
Mocha with Milk
Cappuccino
Viennese Melange
Latte Macchiato
Espresso
Double Espresso
Hot Water
Tea
Cappuccino with Sugar
Espresso with Sugar
Espresso Choc
Hot Chocolate
Hot Milk
Cold Water

= Factory default settings

= Customizable options (depend on chosen ingredients)

= Refrigeration unit in under-cabinet possible
