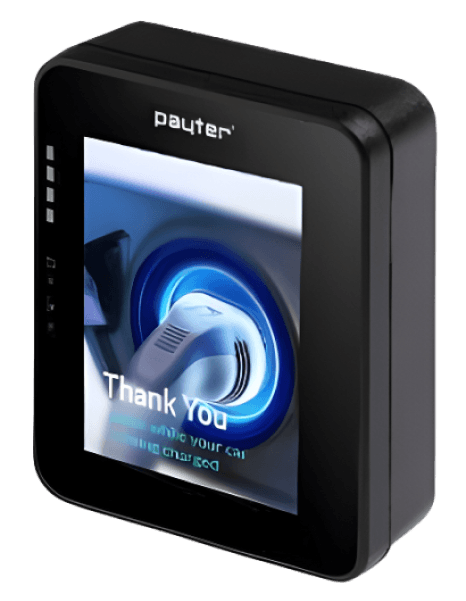

The Apollo Terminal

The Apollo and ApolloMax are PIN Entry Devices (PED) for payment processing in unattended environments. The terminals have the ability to provide contact, contactless and magstripe transactions.

The terminal supports the following main features:
  • TFT LCD with capacitive touch
  • Chip Card Reader
  • Contactless Reader
  • Magnetic Stripe Reader
  • Ethernet
  • USB
  • Wifi, Blue Tooth
  • MDB
  • Optional 4G Modem
Package Contents
Package Contents

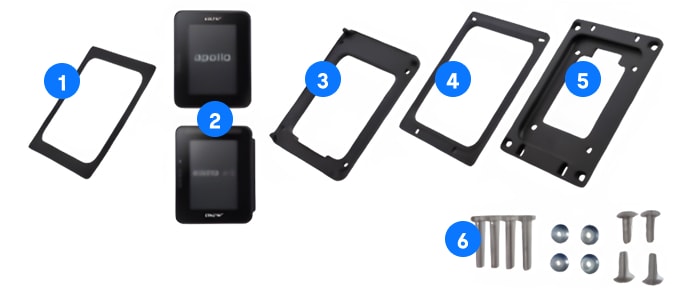

  • 1. Cover Plate
  • 2. Terminal
  • 3. Terminal Rubber Gasket
  • 4. Rear Rubber Gasket
  • 5. Mounting Frame
  • 6. M4Screws, and bolts set
Supported Card Schemes
Visa logo
Mastercard logo
Maestro logo
Apple Pay logo
Google Pay logo
Samsung Pay logo
Discover logo
Diners Club logo

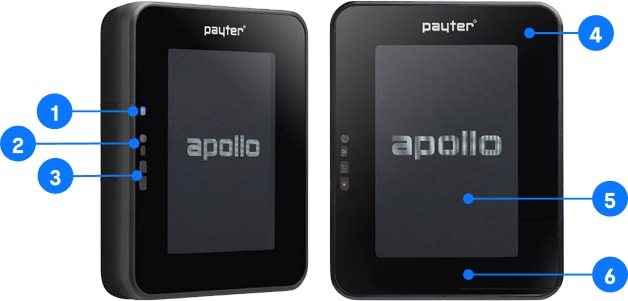

Apollo Terminal
NumberItemDescription
1 LEDs (4)Multicolor status LEDs
2 Camera and Locator lightEnabling QR-Code reading
3 Proximity sensor
4 WiFi & Bluetooth Module
5 3,5 Inch touch screen
6 Speaker
Apollo Terminal

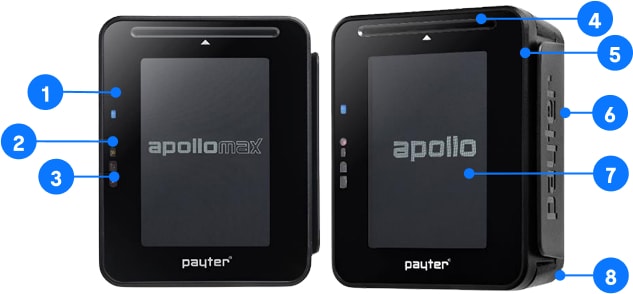

Apollo Max Terminal
NumberItemDescription
1 LEDs (4)Multicolor status LEDs
2 Camera and Locator lightEnabling QR-Code reading
3 Proximity sensor
4 Chip Card Reader
5 WiFi & Bluetooth Module
6 Magnetic Stripe Reader
7 3,5 Inch touch screen
8 Speaker
Apollo Max Terminal

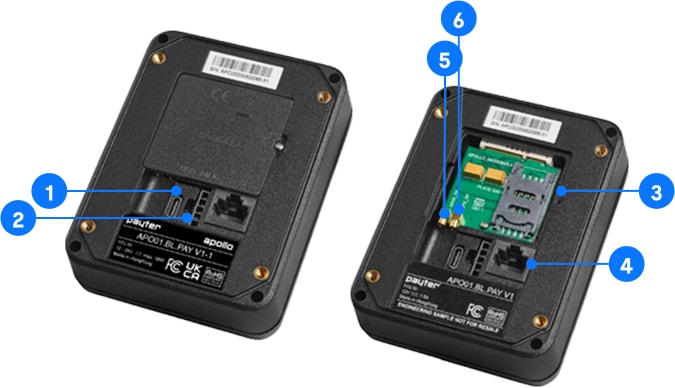

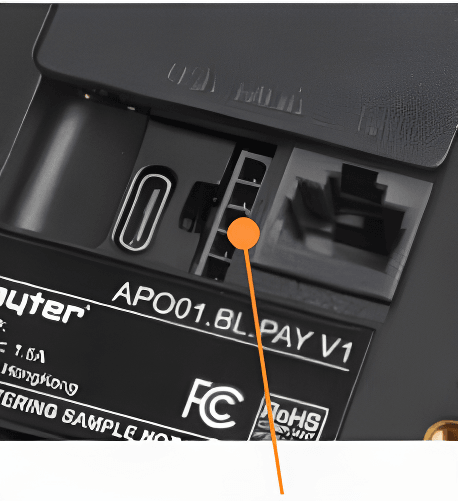

Connections
Connections
NumberItemDescription
1 USB-C PortHost and Slave Connector
2 Micro Fit MDB ConnectorPort to connect with the internet through the LAN
3 4G / GPS ModemModem with GPS functionality (optional)
4 RJ 45 LAN ConnectorPort for USB-C cable to interface with the terminal from the host machine
5 Antenna ConnectorsMMCX Connector for 4G Antenna
6 GSSN ConnectorConnector for GSSN (GPS) Antenna
Contactless Card Reader

The Apollo and ApolloMax have a contactless reader that supports all contactless EMV cards including ApplePay, Google Pay, ISO14443 Type A & B (T=CL), Mifare Classic, Desfire cards as well as the ISO18092: NFC Protocol.

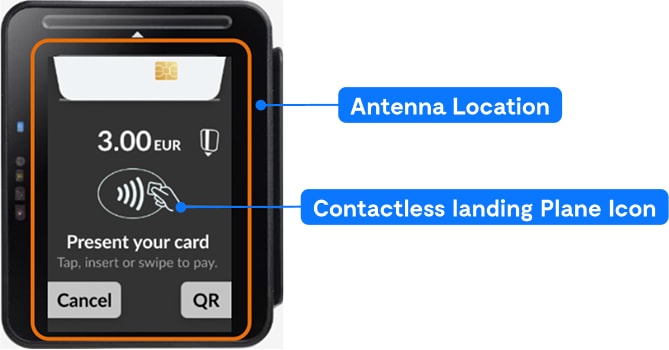

Cards and phones are best read when positioned over the center of the contactless icon.

Contactless Card Reader
Power Connection
  • Provided 220V power supply
  • MDB or similar bus

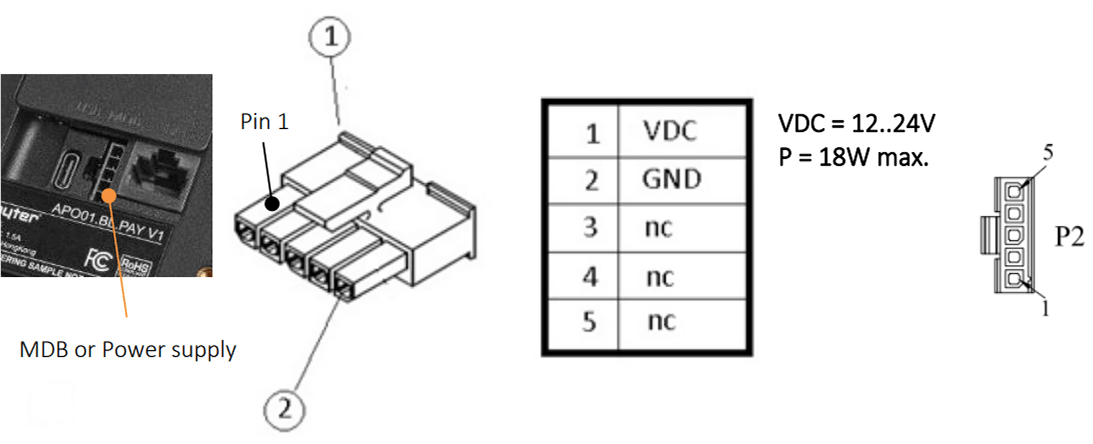

Please find below the specification for connecting the terminal:

Power Connection Specification
NumberItem DescriptionOtyOrderCodeManufacturer
1 Micro-Fit 3.0 Receptacle Housing, Single Row, 5 Circuits143645-0500Molex
2 Micro-Fit 3.0 Crimp Terminal Female 20-24AWG243030-0038Molex

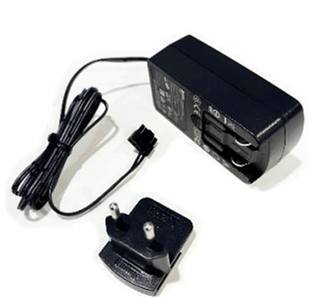

Dimensions Power Supply
Power Supply Front View
Power Supply Side View
Accessories

The following accessories are available for integration and connection.

MDB / Power Cable

MDB / Power Cable

Stick on GSM Antenna

Stick on GSM Antenna

LAN Cable 10 meter

LAN Cable 10 meter

Molex Adapter Cable

Molex Adapter Cable

MMCX to SMA Adapter

MMCX to SMA Adapter

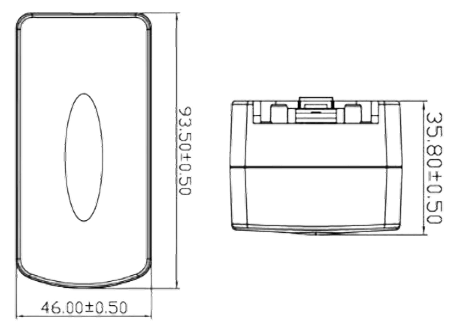

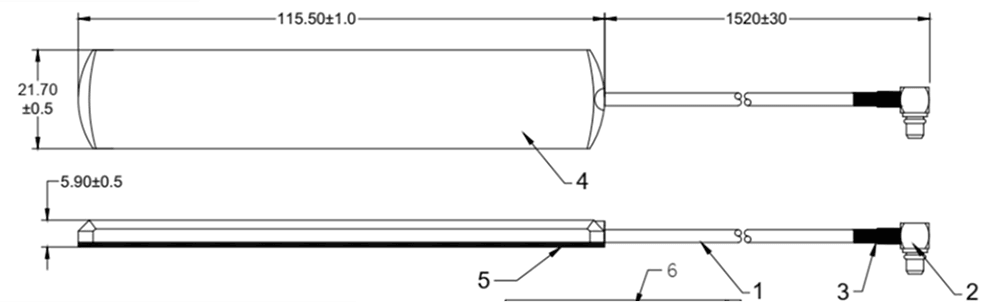

Dimensions Antenna
Dimensions Antenna
Installation

Only use cables and mounting materials provided with the terminal, proper function of the terminals is not guaranteed when 3rd party accessories are used with the exception of the LAN cable.

  • Always place the rubber gasket provided with the terminals
  • Do not install the ApolloMax in a position where it is exposed to direct rain or hostile weather
  • To avoid reflections and guarantee readability, do not expose the display to direct sunlight

When supporting pin entry:

  • For the security of the card-holder, make sure that PIN privacy is guaranteed
  • Locating the display outside the field of vision of cameras, mirrors and so on, and away from stairs
  • Check all local regulations and requirements for PIN privacy

An offset of 5 mm along the sides and rear of the terminal will provide enough distance. If you have any questions with regards to the mechanical integration, please contact the Payter support desk.

Placing the Antenna
  • Place antenna externally for better signal strength. (Recommended)
  • If signal strength is strong inside the machine (2+ bars) internal installation could be considered.
  • Make sure the antenna is not completely surrounded by metal or mounted on metal. (reception loss)
  • Use caution when fastening the external antenna cable to MMCX connector on the terminal, too much force can damage the connection.

An offset of 5 mm along the sides and rear of the terminal will provide enough distance. If you have any questions with regards to the mechanical integration, please contact the Payter support desk.

Things to consider:

  • Radio waves move in a straight line between our antenna and the antenna on the cell tower
  • They do not go around obstacles, they go through them if they can
  • Glass and wood are no problem but steel and concrete pose a real challenge
  • Consider heating ducts, plumbing and other such obstacles
Modes of Operation

The Apollo and ApolloMax terminals support multiple modes of operation to accommodate different integration scenarios and business requirements.

Machine Interface

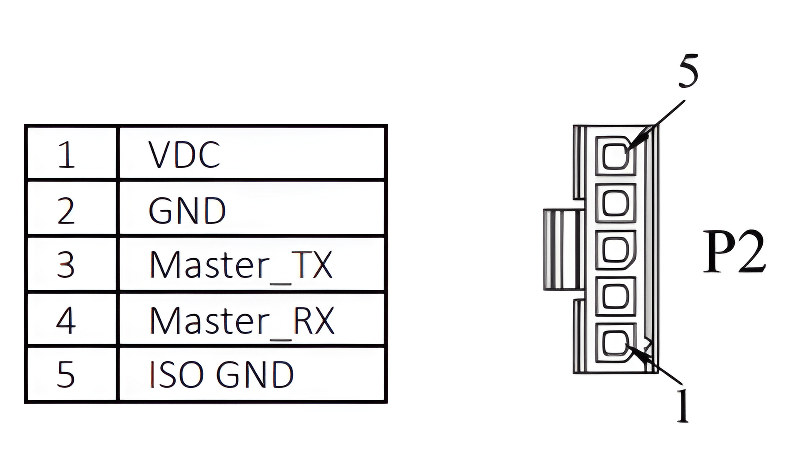

MDB

The Multi Drop Bus is an industry standard interface for vending machines. If your machine supports an MDB - Cashless Device, then this will require little effort to reach a working solution, provided that the MDB standard is correctly implemented in your machine. An advantage of MDB is that the interface also supplies power to the terminal, requiring no additional power supply.


PSP

This message based protocol provides basic functionality for machine to payment terminal communication, over an RS232 or TCP/IP connection.


Cloud

This API provides methods to manage payment sessions on Payter terminals, in this mode of operation the terminal is slaved to the Payter Cloud API.


Potential Free Pulse Contact

A configurable potential free pulse contact is available to signal your application that a payment transaction was successfully processed. In addition, an input port is available to enable/disable the terminal, if for example the machine is out of order. Although a Potential free pulse contact interface is widely used, there is no standardization, and requires attention to electrical details before it can be used.

MDB Mode

MDB stands for multidrop bus. Since the 1980, the multidrop computer bus has been used by vending machine controllers to communicate with the vending machine's components, such as a currency detector. It is now an open standard of the National Automatic Merchandising Association (NAMA).

MDB or Power Supply

MDB or Power Supply

MDB Connection
Internet Connection

An Internet connection to an Apollo series terminal is required, for configuration of the terminal and online verification of payments, remote management functionality and telemetry.

The following options are available to connect to the internet:

  • LAN connection using the onboard RJ45 connector LAN port (Ethernet (100BASE-TX, 10base-10) network port).
  • Mobile internet connection using an optional 4G/GSSN modem.
Firewall network settings for the Payter Payment Terminal

When the terminal is connected through the LAN Cable or WiFi, it will require open ports in the Firewall. Below you will find a schedule with the required network settings:

ApplicationURLPortInternet Protocol
Payter Terminal Management System https://capi-api.payter.nl/3185TCP
Gateway NMI/CreditCall https://live.cardsaveonlinepayments.com/443TCP/IP
Cloud Host https://capi.mypayter.com/3185TCP
Google NTP Server 1 time1.google.comUDP123
Google NTP Server 2 time2.google.comUDP123
Google NTP Server 3 time3.google.comUDP123
Google NTP Server 4 time4.google.comUDP123
MQTT Broker mqtt.mypayter.comTCP8883
Storage Bucket update.mypayter.comTCP443
Shelfhub shelfhub.infra.mypayter.comTCP443
Gateway Monet + Host 193.33.23.54TCP37696
Terminal Customization

The Apollo and ApolloMax terminals offer various customization options to align with your brand identity.

Customization

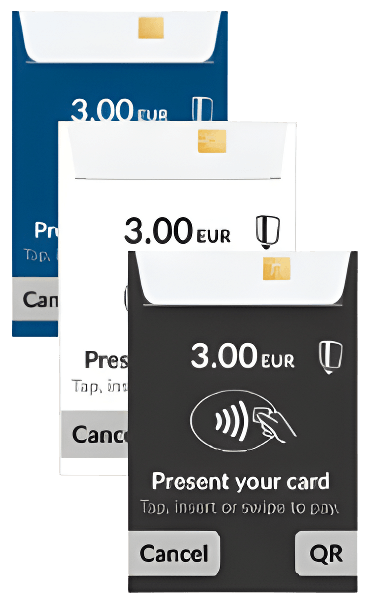

The following parts of the user Interface can be customized to reflect your company brand:

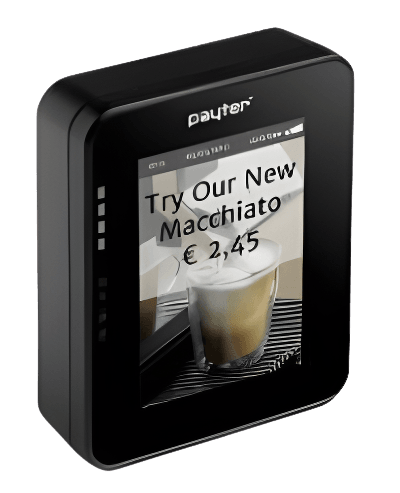

Idle Screens

Idle Screens Prior to the start of transaction i.e with product placement.

Small Logo in Display

Small Logo in Display
Background Color

Background Color

Thank You Screen

Thank You

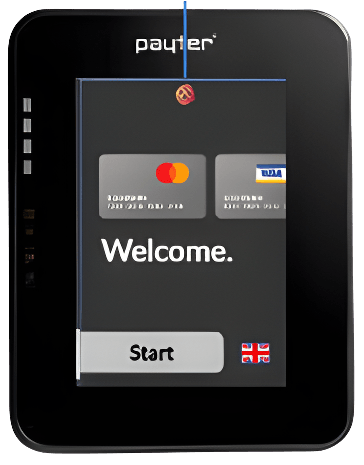

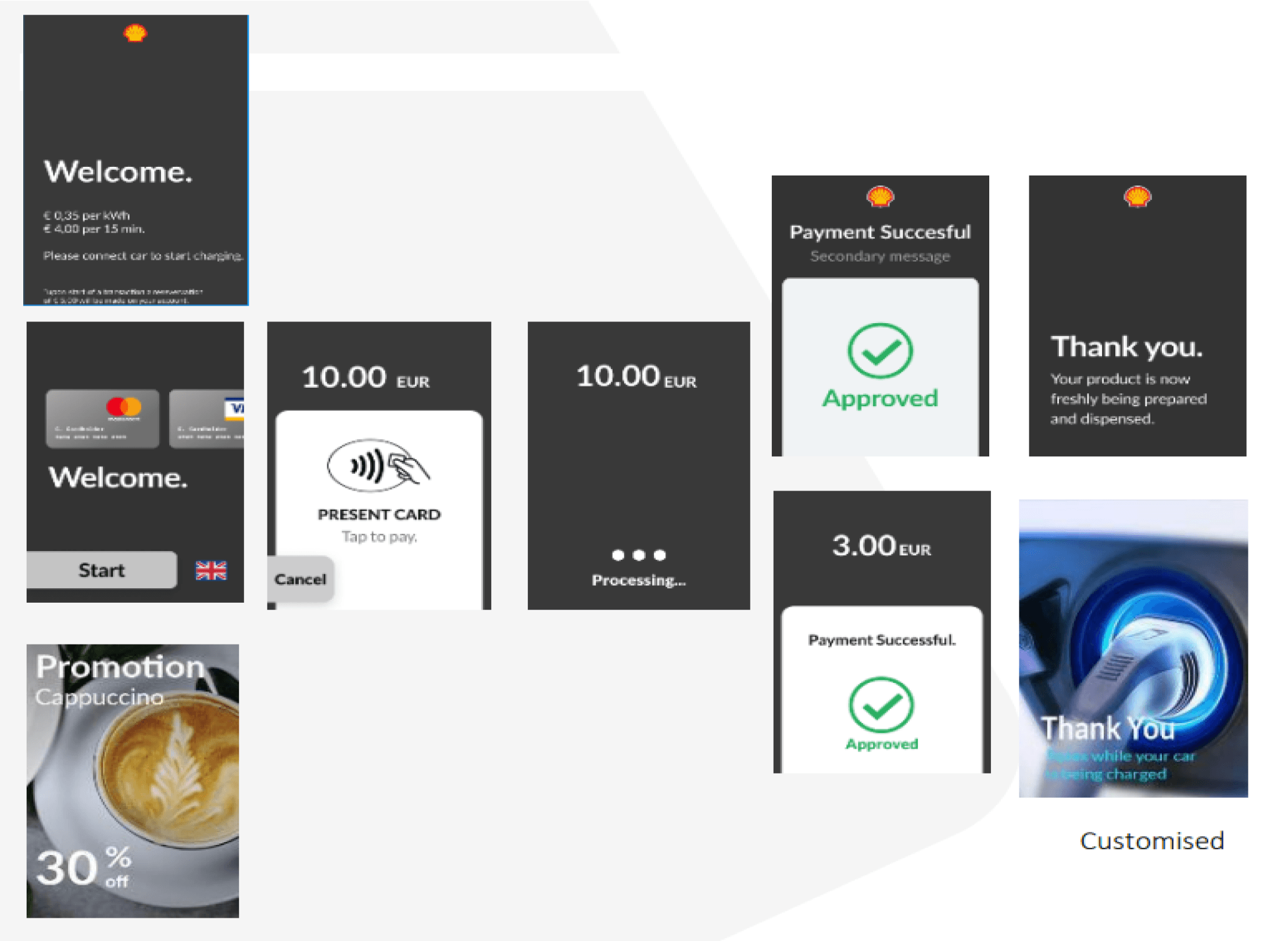

Example Payment Flow
Idle Screens RotatingScanning For CardAuthorisingTransaction ResultThank Message
Example Payment Flow
Terminal Configuration
Configuration

The Apollo terminals are continuous connected to the Payter Terminal Management System (TMS). The configuration of the terminals, including Key loading can only be done through the MyPayter TMS portal. The MyPayter portal allows:

  • Efficient and timely deployment of keys, configuration updates and payment device firmware
  • Remote management of large quantities of Payter Terminals
  • Future proof system in which changes in functionality can be applied easily, safely, and quickly, while reducing the Cost of Ownership.
  • Continued EMV compliance
Mounting Options

The Apollo and ApolloMax terminals offer different mounting options to accommodate various installation scenarios.

Front Mounting

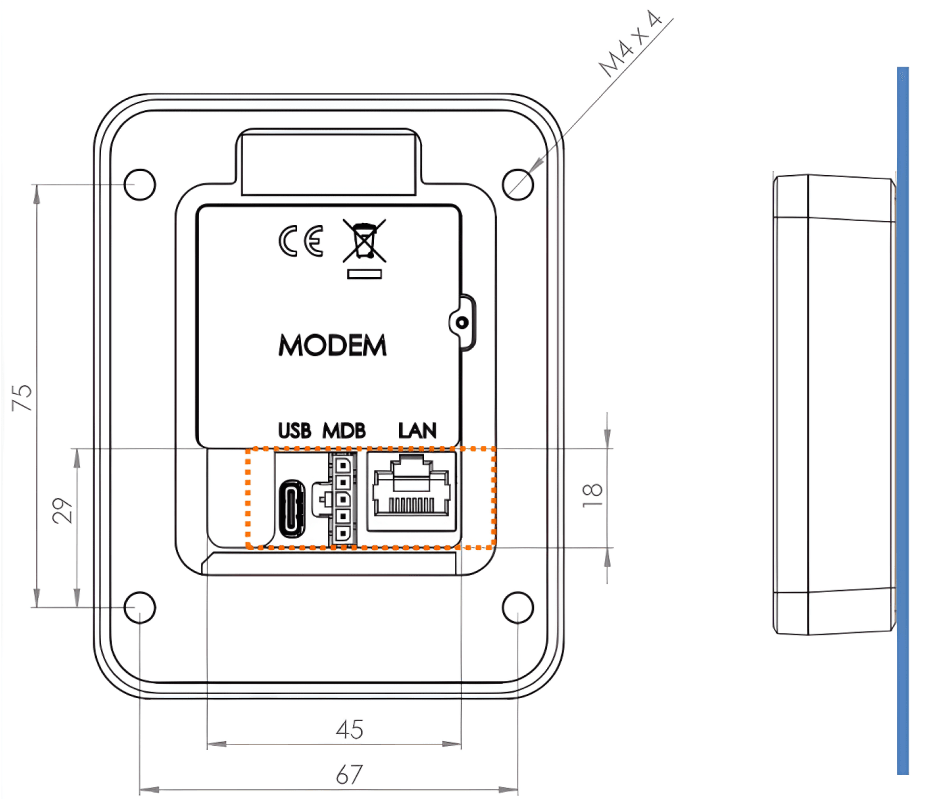

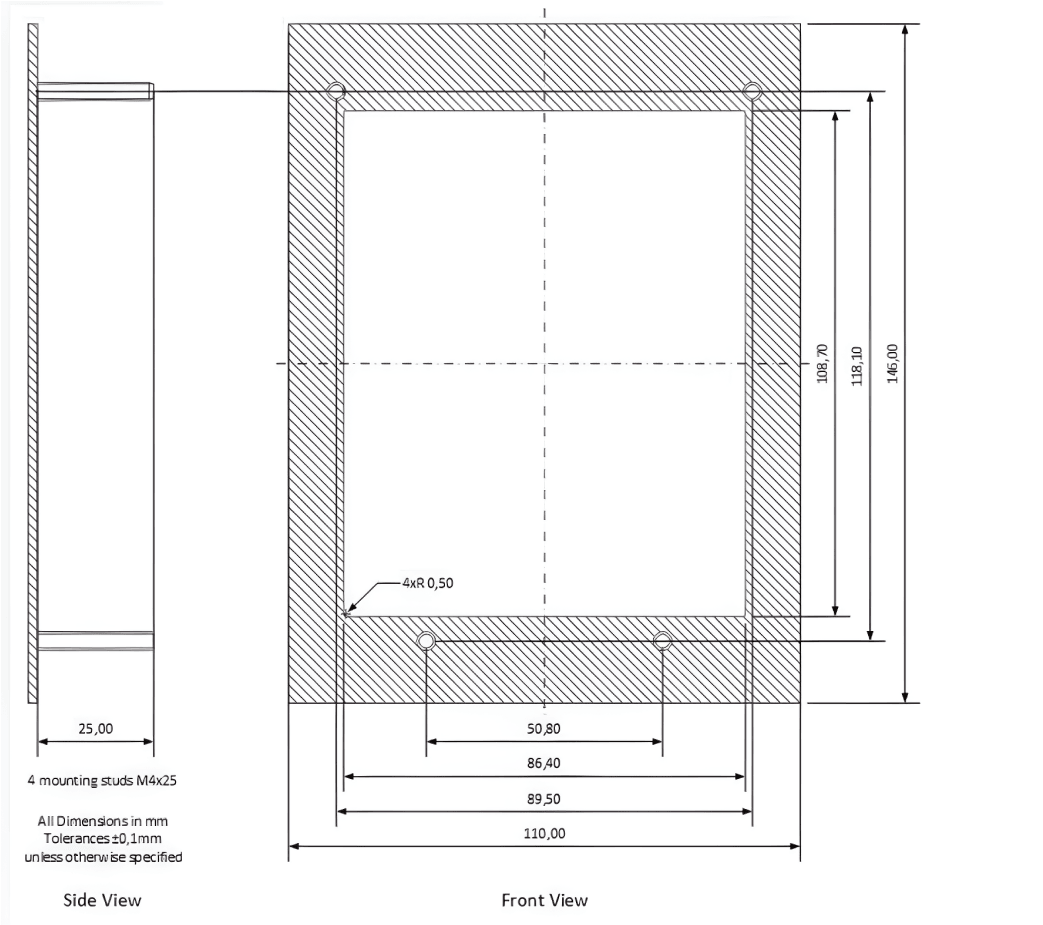

The Apollo series terminals can be directly mounted on the front panel of a machine. The mounting footprint of Figure 5 is applicable for both the Apollo and the ApolloMax terminal.

Front mounting

Front mounting

EVA mounting

The majority of the vending machines have a provision for installing payment terminals. The dimensions of the Apollo series terminals are based on the European Vending Association (EVA) standard.

Device opening

Device opening

  • Use the supplied mounting frame if no weld studs are available
  • Drill mounting holes with a diameter of 4 millimeter at the positions of the indicated weld studs, to allow mounting of the frame.
  • Recommended torque setting of 0.8- 1.0 Nm (mounting) or finger tight
