P6X-P68 Manual

The P6X and P68 are PIN Entry Devices (PED) for payment processing in unattended environments. The terminals have the ability to provide contact, contactless and magstripe transactions depending on the model.

Banner Image
Navigation Panel
P6X Terminal Overview

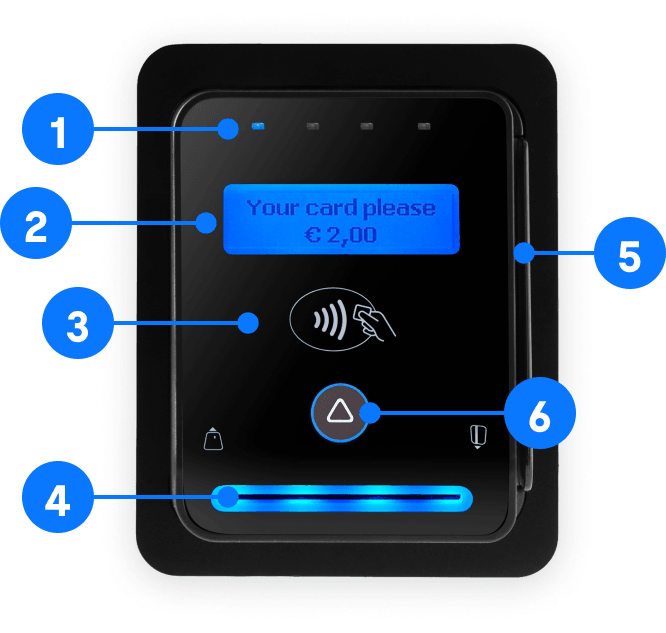

P68 3in1 Terminal
NumberItemDescription
1 Led IndicatorsTransaction status indication
2 Status Display Blue BacklightShows transaction information and basic device diagnostics.
3 Contactless SymbolLocation for tapping Contactless Cards
4 Contact Card SlotPush/Pull type
5 Magnetic Stripe Card Swipe Slot3 Track Reader
6 Triangle ButtonMultifunction button
P68 3in1 Terminal

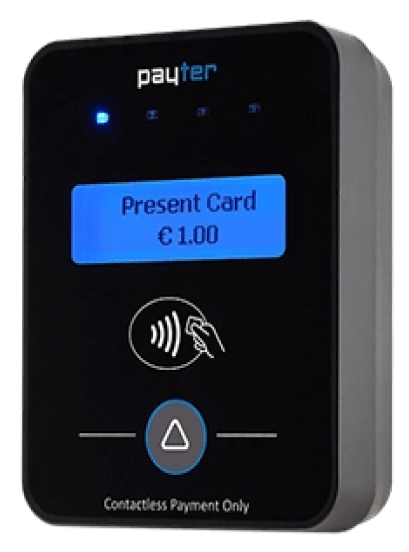

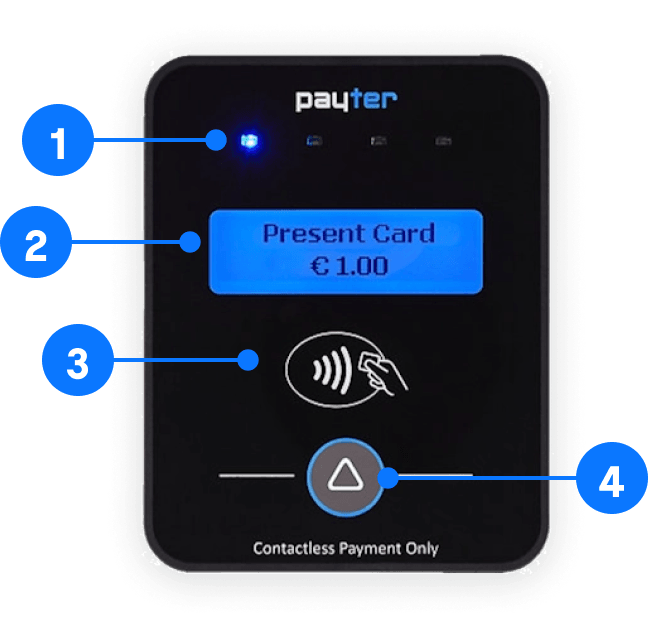

P66 Contactless Only Terminal
NumberItemDescription
1 Led IndicatorsTransaction status indication
2 Status Display Blue BacklightShows transaction information and basic device diagnostics.
3 Contactless SymbolLocation for tapping Contactless Cards
4 Triangle ButtonMultifunction button
P66 Contactless Only Terminal

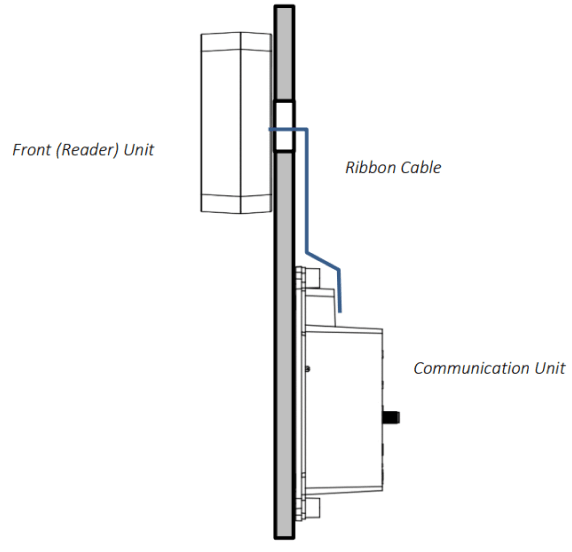

P66 Split Build on Top Terminal

The Split Build on Top model allows for flexible installation where the display unit can be mounted separately from the main processing unit, ideal for kiosks and vending machines with limited space.

P66 Split Build - Display UnitP66 Split Build - Processing UnitP66 Split Build - Processing Unit

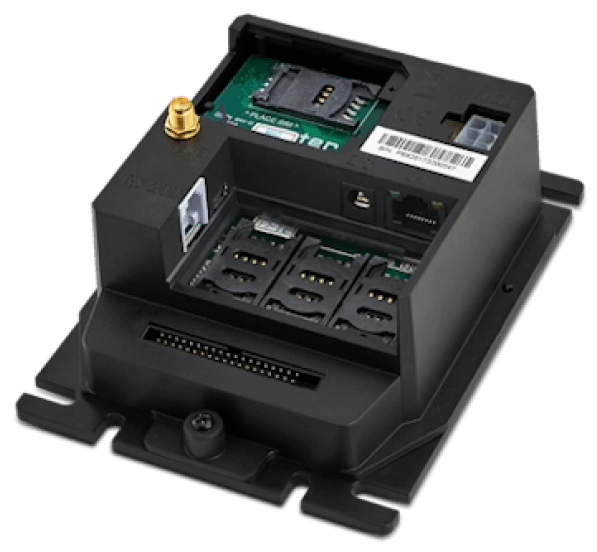

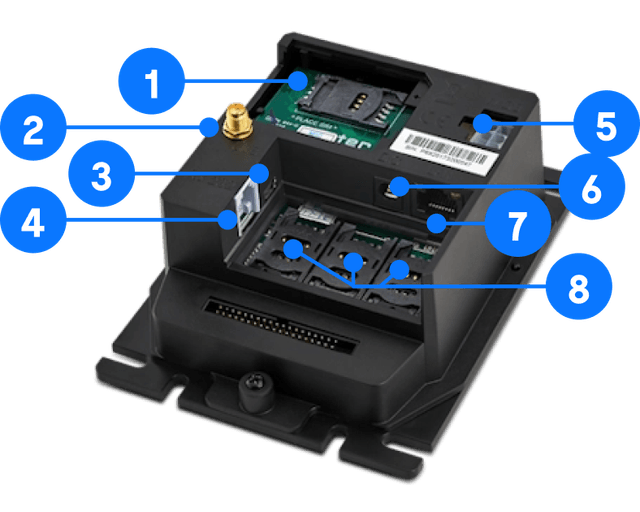

Rear View (This part is similar for P68 & P66)
NumberItemDescription
1 3G/HSPA ModemThe Modem is placed behind a hatch labeled MODEM
2 Antenna Connector (SMA-Female)Connect a suitable 3G/HSPA BAND antenna to this connector
3 USB portHost Machine Interface
4 RS232 PortHost Machine Interface
5 MDB PortHost Machine Interface
6 DC Input PortPower Supply Adapter connection
7 Ethernet PortHost Machine Interface and/or Internet connection
8 SAM slotsThe SAM slots are located behind a Hatch labeled SAM MODULES
9 Ribbon Cable connector (Split units only)To connect the Card Reader front unit in the P66 Split configuration
P6X Rear View
Basic Connectivity
Connecting the terminal

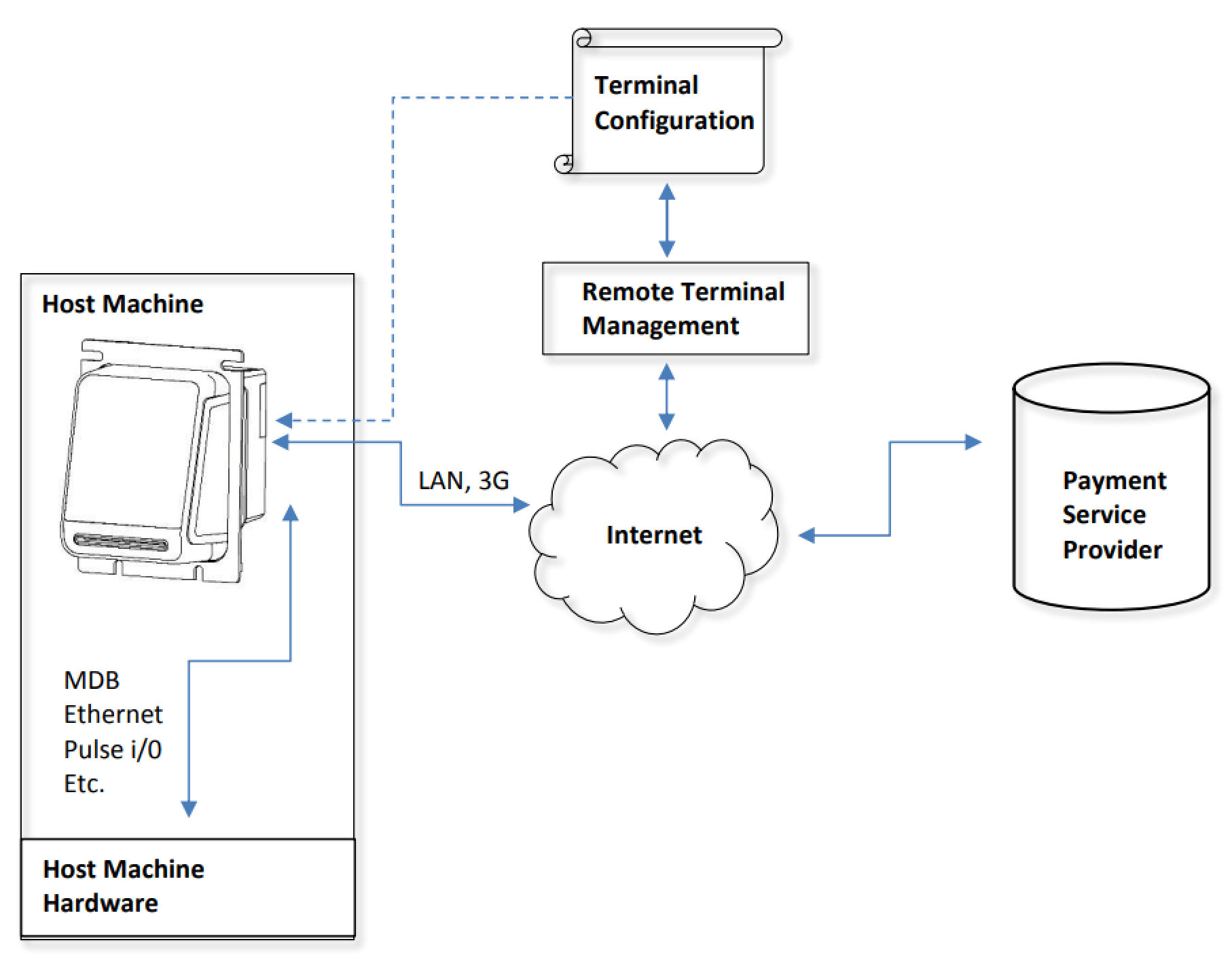

Connectivity Diagram

Host Machine Interface

MDB

The Multi Drop Bus is an industry standard interface for vending machines. If your machine supports an MDB - Cashless Device, then this will require little effort to reach a working solution, provided that the MDB standard is correctly implemented in your machine.

An advantage of MDB is that the interface also supplies power to the terminal, requiring no additional power supply.

Executive

A P6X Terminal can be combined with the VendBox to enable "Executive Node" functionality. The VendBox is sold separately from the terminal and acts as a converter between Executive and MDB.

Potential Free Pulse Contact

A configurable potential free pulse contact is available to signal your application that a payment transaction was successfully processed.

In addition, an input port is available to enable/disable the terminal, if for example the machine is out of order.

Although a Potential free interface is widely used, there is no standardization, and requires attention to electrical details before it can be used.

RTP

Remote Terminal Protocol, is used to control the terminal functionality from anywhere on a LAN, or through USB, directly from your software application.

PVP

This message based protocol provides basic functionality for machine to payment terminal communication, over an RS232 connection.

CCI

This message based protocol is used in certain coffee machines, and communicates over RS232.

Internet Connection

Ethernet

A P6X Terminal can be connected to a LAN, through its onboard Ethernet port, and connect to the Internet through the LAN.

3G/HSPA modem

In case there is no access to a LAN network a 3G/HSPA MODEM is optionally available

Terminal Configuration

Secure Configuration Files

These files contain the settings that determine the certified terminal configuration and cannot be modified without consulting the manufacturer.

Terminal Settings

These settings need to be configured for each mode in which the terminal is operating, to allow communication with the Host Machine and payment service provider. Each chapter gives an overview of the related settings.

Optional SAM

The SAM module contains cryptographic key material that is needed to set up a secure connection, and authenticate the terminal, with the payment service provider.

Optional Data SIM

A 3G/HSPA MODEM option requires a data SIM with access to mobile internet services. A SIM card can be provided by either your local mobile internet provider or by Payter.

Payment Flow

A Host machine is always responsible for initiating a payment on the terminal, the only exception is Auto Scan mode. This chapter describes how a payment is performed by a user and how to interpret the feedback that is given by the terminal.

Accepted Card Types
Card TypeDescription
Contactless Card/ Mobile phones When prompted to do so, tap the Card or Phone with NFC on the Contactless Symbol on the front of the terminal. Keep the Card in place until the terminal indicates that the card can be removed.
Contact Chip Card Insert the Chip Card in the illuminated card slot. Do not remove the card until you are prompted to do so.
Magnetic Stripe Card The user can swipe a magnetic stripe card through the swipe slot as indicated on the P68 terminal.
Visa logo
Mastercard logo
Maestro logo
Apple Pay logo
Google Pay logo
Samsung Pay logo
Discover logo
Diner club logo
Transaction & Display Messaging

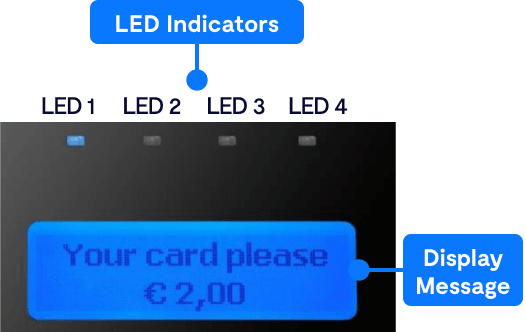

Terminal Display

BASIC PAY FLOW MESSAGES

StateDisplay MessageLED IndicatorsBuzzer Sound
Initiating Transaction"Your card please" + Amount1
Contactless Card Presented
Cards Read OK"Card read OK remove card"1, 2, 3, 4
Authorizing Transaction"Authorizing remove card"1, 2, 3, 4
Transaction Approved"You have paid"Success tone
Transaction Declined"Not accepted pay differently"Error tone
Contact Chip Card Presented *
Confirm Amount"Press Start for OK"
Authorizing Transaction"Processing please wait"
Transaction Approved"You have paid Remove card"Success tone
Transaction Declined"Not accepted Remove card"Error tone
Magnetic Stripe Card Presented *
Authorizing Transaction"Authorizing"
Transaction Approved"You have paid"Success tone
Transaction Declined"Not accepted pay differently"Error tone

* = P68 only functionality

ADDITIONAL MESSAGES

Display messageDescriptionPossible Solution
"Try another card" Unable to read (contactless) card / contactless card not supportedTry to present card again. If persistent, try a different card
"You have waited too long" The transaction initiation timed outRetry Transaction
"Transaction canceled" Transaction was canceled by the User
"One card only" Two contactless cards were detected by the terminal simultaneously
"Chip cannot be read" Unable to read contact card /contact card not supportedCheck if contact card is inserted properly
"Try other interface" The transaction cannot be initiated using the current interfaceUse another card interface, for example try contact interface instead of contactless
"Service Code nnn" A processing error occurred; the specific error code "nnn" provides details about the error
Modes of Operation
MDB Mode

The Multi Drop Bus is an industry standard interface for vending machines. If your machine supports an MDB - Cashless Device, then this will require little effort to reach a working solution, provided that the MDB standard is correctly implemented in your machine.
An advantage of MDB is that the interface also supplies power to the terminal, requiring no additional power supply.

Connecting the terminal

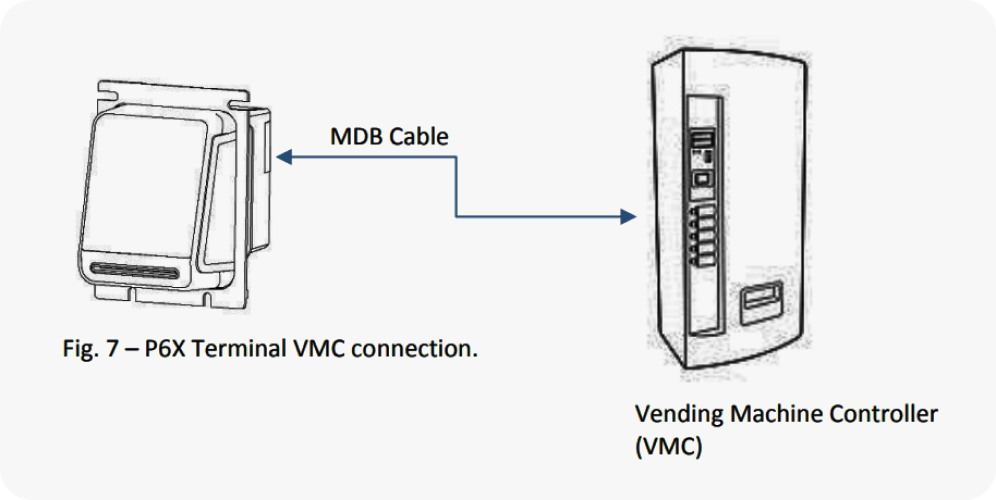

MDB Connection

Connect the P6X terminal to the VMC using the supplied MDB Cable. Power up the vending machine, the terminal should power up as well. After boot-up has completed the terminal should automatically register with the VMC.

Pay Flow
Method 1 - Always Idle Mode:

For machines supporting MDB feature level 3 "always idle mode," users can directly select a product to initiate a vend cycle.

Method 2 - Start Button:

If "always idle mode" is not supported, users must press the "Start Button" on the terminal before selecting a product.

Payment Process:

After product selection, users are prompted to pay.

Dispensing and Refunds:

Upon successful payment, the product is dispensed. If the vend is unsuccessful, most machines automatically cancel the payment, but this depends on the vending machine's features.

Applicable Settings

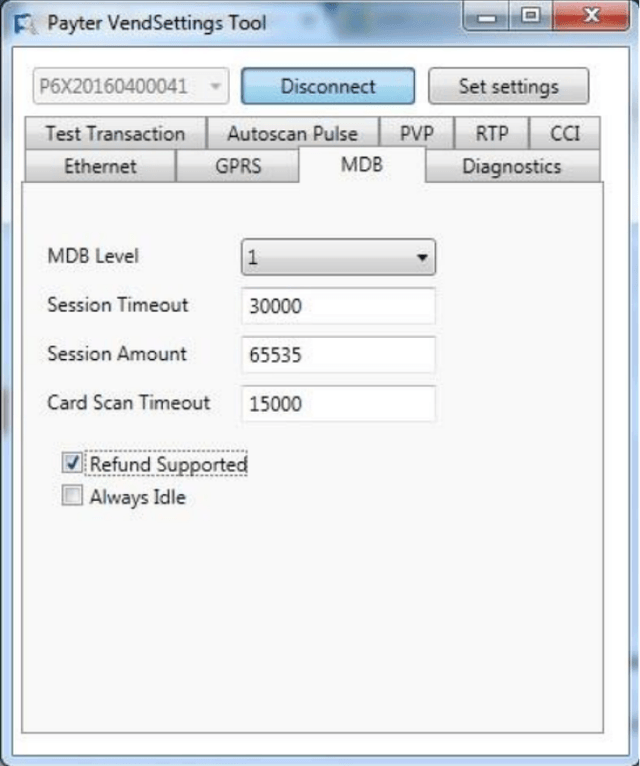

MDB Settings
SettingDescription
MDB Level [1,3] determines the capability level reported to the vending machine. Should be left at 3 unless the terminal and vending machine do not register correctly.
Session Timeout Indicates the time period, in ms, for selecting a product after the START button is pressed. Note this is only applicable when not in "always idle" mode.
Session Amount The amount, in cents, that the Terminal provides as Credit to the vending machine at the start of a session. Note this is only applicable when not in "always idle" mode.
Executive Mode

A P6X Terminal can be combined with the VendBox to enable "Executive Node" functionality. The VendBox is sold separately from the terminal and acts as a converter between Executive and MDB.

Protocol A (Executive)
Executive Protocol

Support for the MDB comes standard with the Payter terminal in case the Vending Machine only supports the Executive protocol an additional converter (Payter VendBox) is required which can be placed in between the terminal and the Vending Machine.

Vendbox
Protocol Bridge:

Connects the Executive vending protocol with the MDB protocol.

Compatibility:

Designed for use with Payter contactless terminals.

Executive Master Role:

Acts as the Executive Master when connected to an Executive vending machine, delegating commands to the Vending Machine Controller (VMC).

MDB VMC Role:

Functions as an MDB VMC, sending vend requests to the MDB cashless device on the MDB bus.

Applicable Settings

Same as MDB Mode

Potential Free Pulse Contact (Autoscan mode)

A configurable potential free pulse contact is available to signal your application that a payment transaction was successfully processed. In addition, an input port is available to enable/disable the terminal, if for example the machine is out of order. Although a Potential free interface is widely used, there is no standardization, and requires attention to electrical details before it can be used.

Connecting the terminal
Electrical Considerations:

Proper attention to electrical details is required for integration.

Customizable Features:

Polarity, pulse width, and pulses per transaction can be configured.

Documentation:

For detailed specifications, request the "Pulse I/O" documentation from your supplier.

Integration Details:

Documentation includes electrical properties and essential settings for device compatibility.

Pay Flow
Automatic Card Scanning:

The terminal starts scanning for cards upon power-up.

Transaction and Pulse:

Each successful transaction triggers a pulse for the specified amount.

Host Machine Responsibility:

The host machine must capture all pulses sent by the terminal.

Error Handling:

If the host machine cannot capture pulses or deliver the service, disable the terminal by:

Powering it down.
Using the terminal's inhibit input.
Resuming Operation:

Re-enable the terminal once the host machine is functional to continue operations.

Applicable Settings

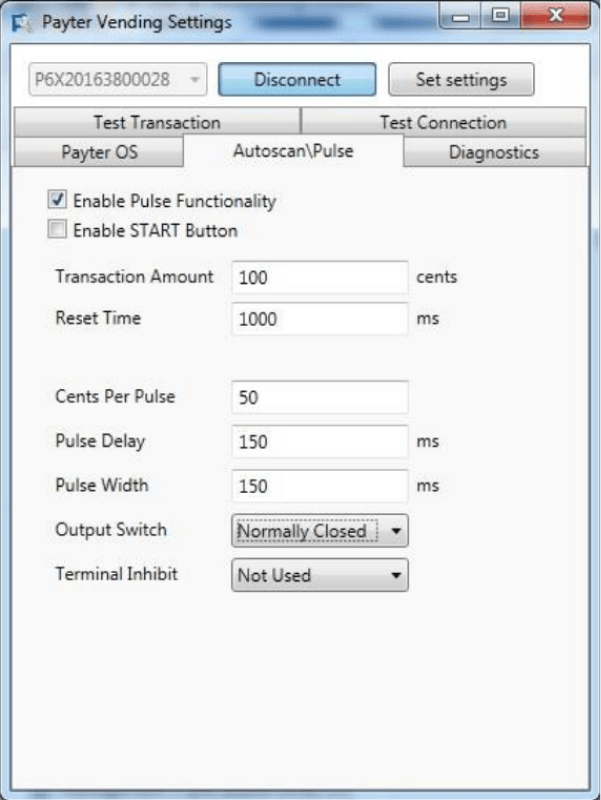

Pulse Settings
SettingDescription
Enable Pulse FunctionalityThis checkbox enables/disables the Pulse Functionality
Enable START buttonEnabled: Each button press will initiate a transaction. Disabled: The terminal will perform transactions automatically when a card is presented.
Transaction AmountThe amount, in cents, for each transaction
Cents Per PulseThis setting determines the number of cents for each pulse given on the Pulse output. If the Cents Per Pulse matches the transaction amount one pulse is given, half the amount two pulses, one third three pulses are given etc.
Pulse DelayTime, in ms, between consecutive pulses given on the pulse output.
Pulse WidthTime, in ms, that the pulse is in the active state.
Output Switch ModeConfigure the Pulse Output potential free Switch position: Normally Open: Switch closes when pulse it active, and open when idle. Normally Closed: Switch opens when pulse it active, and closes when idle.
Terminal InhibitThis setting configures the pulse input as an inhibit input, to temporarily disable the terminal. Not used: The terminal is always enabled. Input High: A high level on the input enables the terminal, a low level disables the terminal. Input Low: A low level on the input enables the terminal, a high level disables the terminal.
Reset TimeIndicates the delay between the transaction result and the start of a new transaction.
RTP Mode

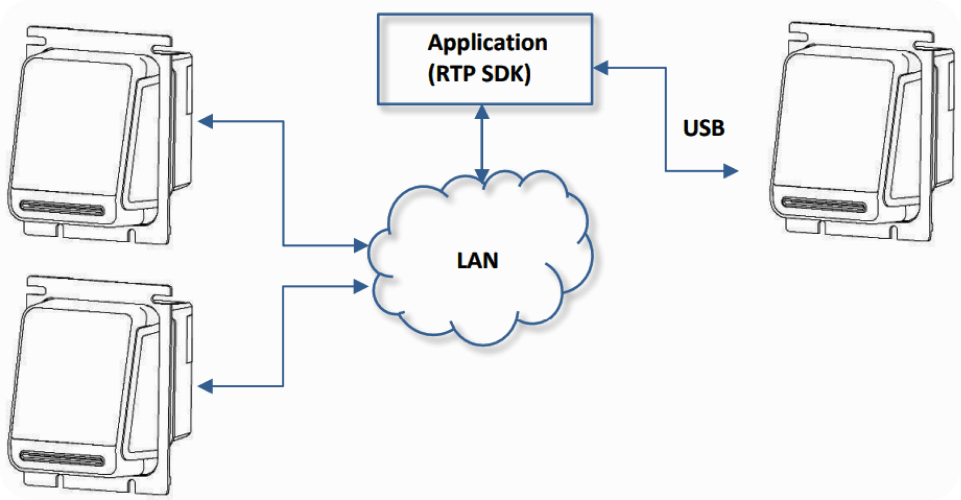

Remote Terminal Protocol, is used to control the terminal functionality from anywhere on a LAN, or through USB, directly from your software application.

RTP Mode

This mode of operation is very specific and dependent on how the P6X Terminal is integrated in the host machine application. Refer the host machine documentation for operational details.

CCI Mode

This message based protocol is used in certain coffee machines, and communicates over RS232.

Connecting the terminal

Always power off the host machine and terminal when connecting the RS232 Cable to the terminal and the host machine devices. Power up the machine and the terminal, make sure the correct payment device is selected in the host machine.

Pay Flow

CCI protocol is not able to notify the terminal that a vend was successful/unsuccessful therefore transactions cannot be canceled.

Applicable Settings

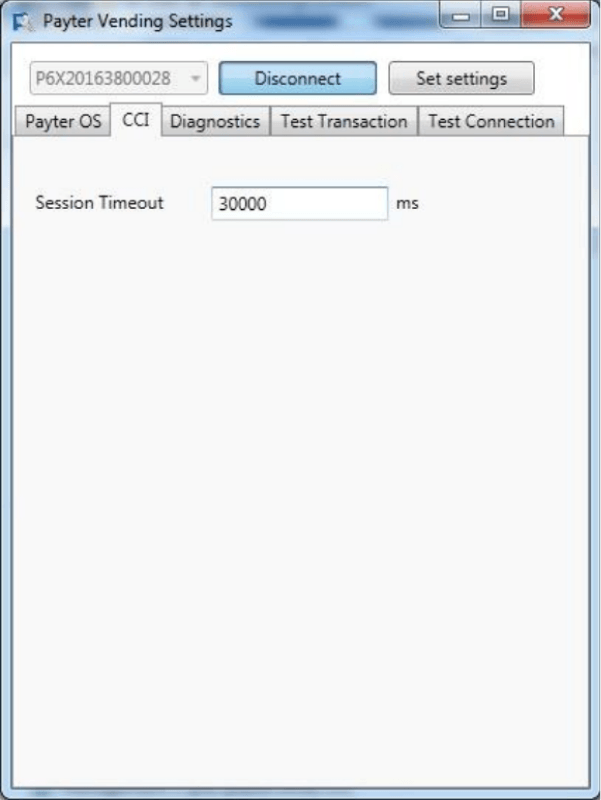

CCI Settings
SettingDescription
Session TimeoutIndicates the time period, in ms, for selecting a product after the START button is pressed.
PVP Mode

This message based protocol provides basic functionality for machine to payment terminal communication, over an RS232 connection.

Connecting the terminal

Always power off the host machine and terminal when connecting the RS232 Cable to the terminal and the host machine devices. Power up the machine and the terminal.

Pay Flow

CCI protocol is not able to notify the terminal that a vend was successful/unsuccessful therefore transactions cannot be canceled.

Applicable Settings
cci Settings
SettingDescription
Baud rateThe baud rate of the serial port can be set between 4800 – 115200 and all standard baud rates in between.
Session TimeoutIndicates the time period, in ms, for selecting a product after the START button is pressed.
Always Idle ModeAllow product selection without pressing start on terminal.
Setting Up Internet

An internet connection for a P6X terminal is necessary to perform features such as online verification of payments, remote management functionality or telemetry.

LAN Connection

The P6X terminal connects to the internet via its onboard Ethernet port, supporting dynamic or static IP addresses. Properly configured LAN infrastructure and firewall settings ensure access to required hosts, enabling optimal transaction performance.

Applicable Settings

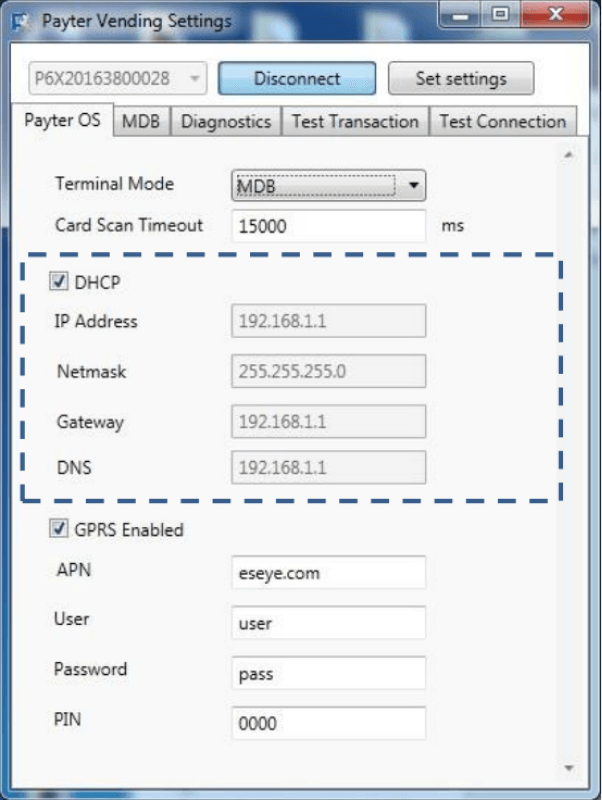

LAN Settings
SettingDescription
DHCP

When checked the terminal will use a Dynamic IP address, all remaining settings will be automatically set and cannot be adjusted by the user.

When unchecked a Static IP address will be used, the remaining settings become available and need to be completed before the Terminal can be used.

IP AddressUse setting provided by the network administrator
NetmaskUse setting provided by the network administrator
GatewayUse setting provided by the network administrator
DNSUse setting provided by the network administrator
GPRS/EGDE/3G/HSPA Modem

When LAN is unavailable, the terminal supports mobile internet via an optional 3G/HSPA modem. For areas with poor HSPA coverage, a 2G fallback ensures connectivity, albeit with reduced performance.

Efficient Transactions:

HSPA modem ensures smooth transaction processing.

2G Fallback:

Maintains connectivity when HSPA is unavailable.

Antenna Included:

Comes with a suitable antenna for most applications.

Placement Matters:

Install the antenna on top of the machine for optimal signal quality.

Signal Check:

Perform a signal quality test at the installation site.

Connection Setup

Modem pre-installed during manufacturing; user installation not possible.

Power off the terminal before accessing the modem compartment or antenna.

Access the modem compartment via the hatch labeled "MODEM" on the terminal's back.

SIM card slot located in the modem compartment.

Antenna connects to a dedicated port on the terminal's back.

Requires a data SIM with enabled internet services for connectivity.

Option to order a data SIM with the terminal or use your own by configuring the correct APN settings.

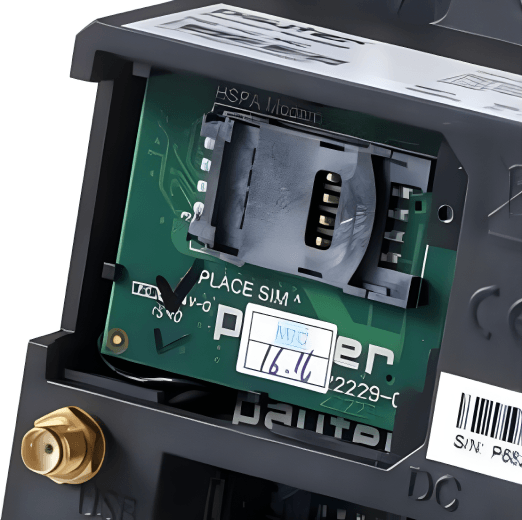

Modem Compartment
Signal Strength Indicator

The bars show the signal strength of the 3G/HSPA connection. When the terminal is connecting the 'i' will be blinking. As soon as the 'i' is on the connection has been established with the 3G/HSPA network and the modem is working properly.

Applicable Settings
Modem Settings
SettingDescription
GPRS EnabledEnables/Disables Mobile Internet, only if the option is already installed.
APNThe Access Point Name is provided by the Mobile internet provider.
UserProvided by Mobile internet provider.
PasswordProvided by Mobile internet provider
PIN

Use this setting only when the SIM is configured with a PIN Code. If no PIN is configured on the SIM this setting has no effect.

It can be useful to configure no PIN or PIN 0000 on the SIM cards to avoid having to configured this code individually on each terminal.

Terminal Configuration
Installing Vending Settings Tool

Download the Vend Settings Tool from the www.payter.com
Install the program by clicking on the install package
Please follow the installations instructions on the screen to successfully finish the install process.

Connecting to the terminal
Terminal Configuration
Use a USB mini B to USB A cable to connect the P6X terminal to a computer.
Power up the terminal and wait for the boot-up process to complete.
Open the Vend Settings Tool and press "Connect" when the serial number appears.
Disconnect by pressing the button again if needed.
Once connected, the terminal settings under various tabs become editable.
Refer to specific interface mode chapters for detailed settings.
